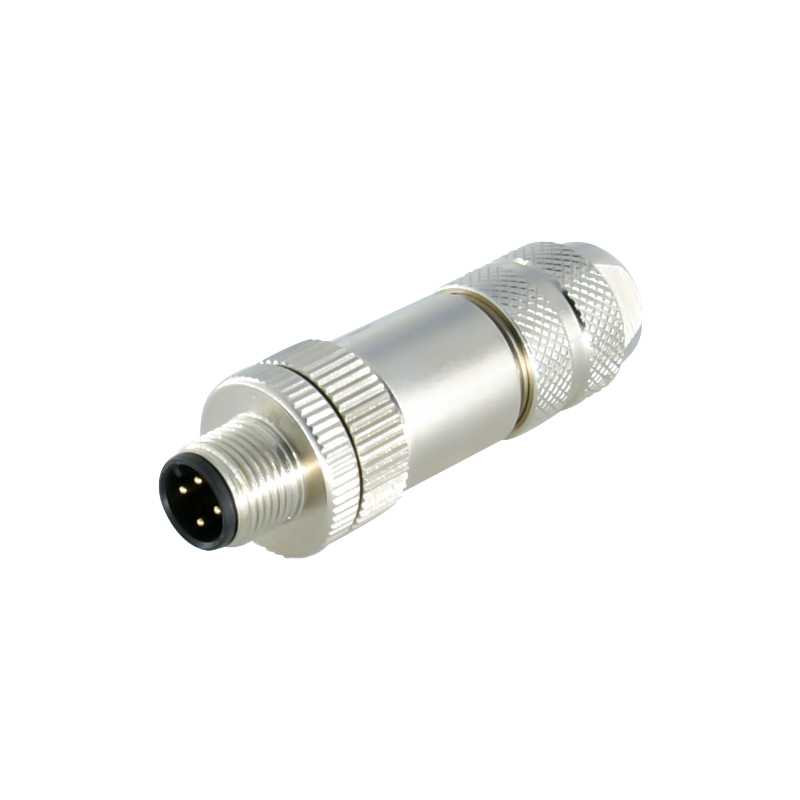

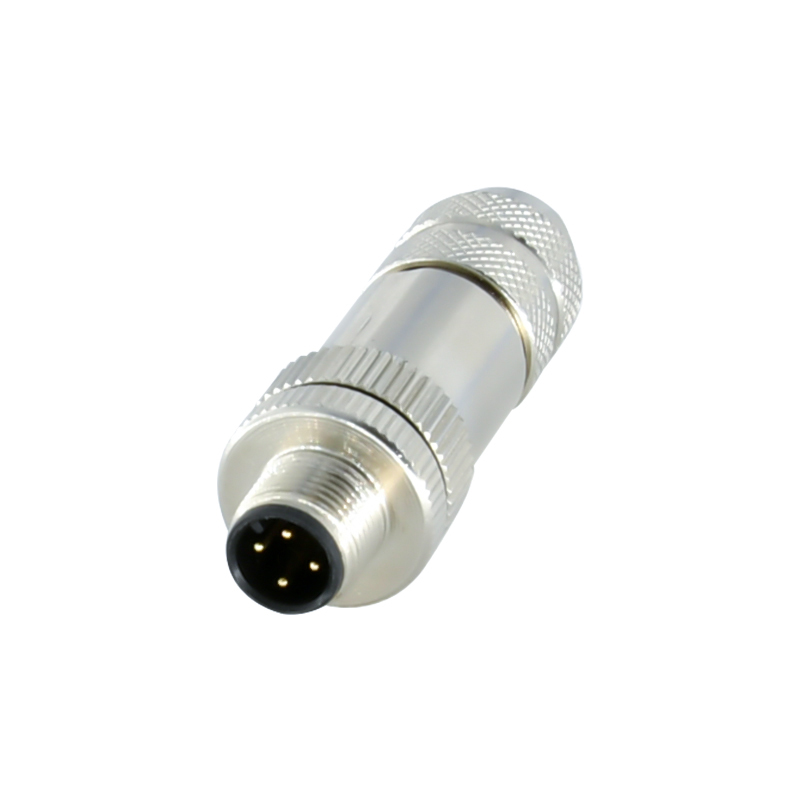

M5 M8 M12 M16 M23 waterproof plug A B D Code male female metal assembly circular connector
M12 assembly connector features:
1,Contact PIN: Brass with Gold plating.
2,Insulation plastic:PA+GF or PUR or LCP
3,Coupling nut/screw: Brass with nickel plating
4,Degree of protection: IP67/ IP68
5,Operating temperature: -25°C ~ +90°C
6,Type: straight and right angled assembly
7,Number of contact: 3pin ,4pin,5pin,8pin,12pin ,17pin
Product Introduction

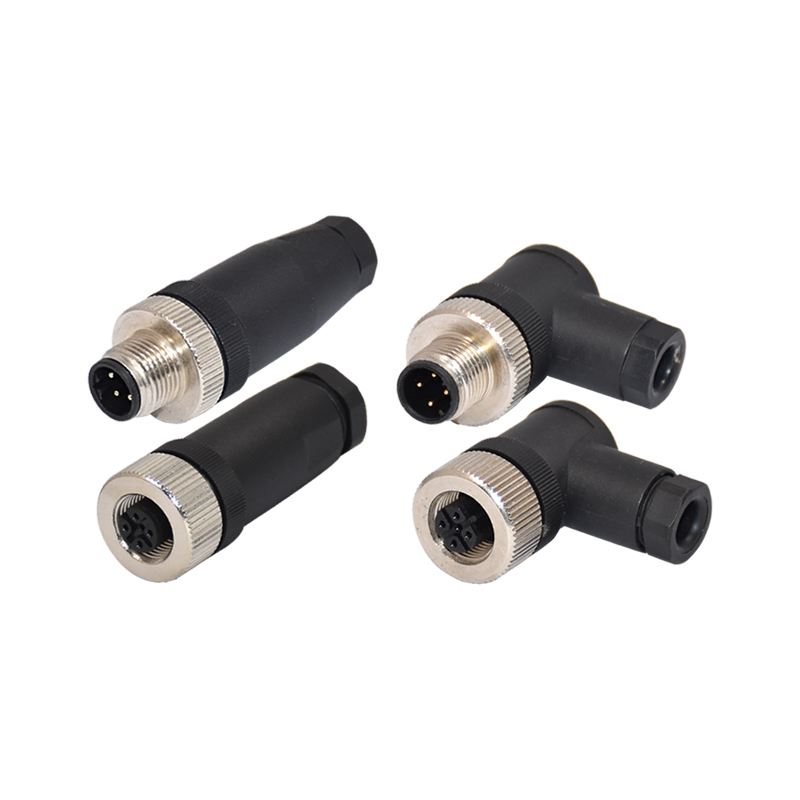

◉ M12 plastic assembly connector
◉ Type: Straight & Angled
◉ Type: Straight & Angled
◉ Coding: A
◉ Contact: 3, 4, 5, 8 pin
◉ Gender:Male and Female
◉ Wire connection type: Screwing
◉ Shield: Non-available
◉ Cable: AWG 24-18 in PG9/PG7 outlet
| Contact | Brass, gold-plated |
| Contact carrier | PA66+GF |
| Knurl | Brass, nickel-plated |
| Gripping body | PA |
| Protection degree | IP68 |
| tempuraturer | -25℃~85℃ |
| Flame retardant rating | UL94-HB |
| Insertion/withdrawal cycles | ≥ 300 cycles |
| Contact resistance | ≤ 5 Ωm |
| Insulation resistance | ≥ 100 Ωm |
