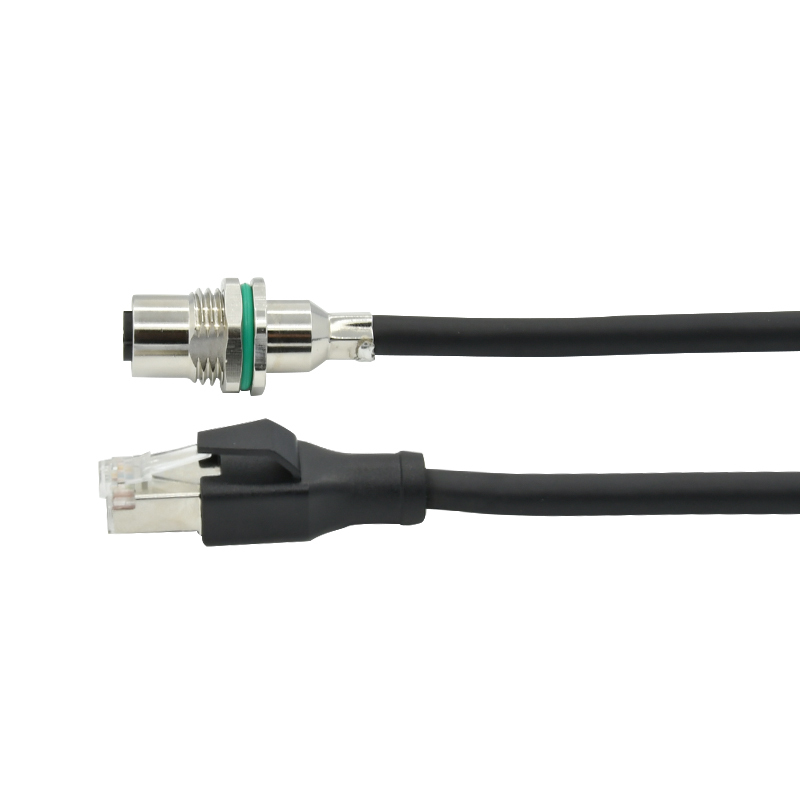

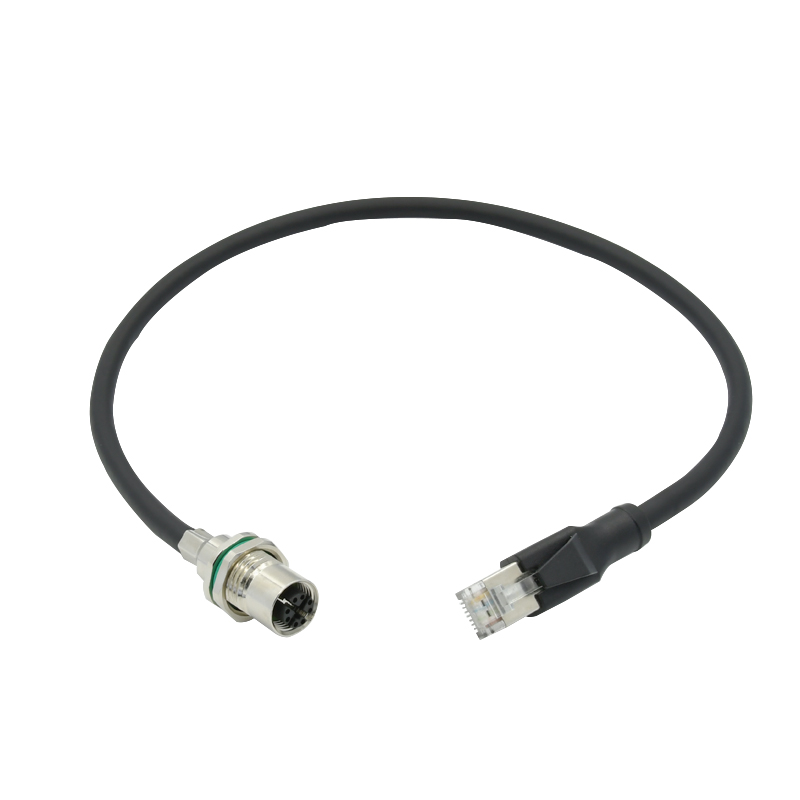

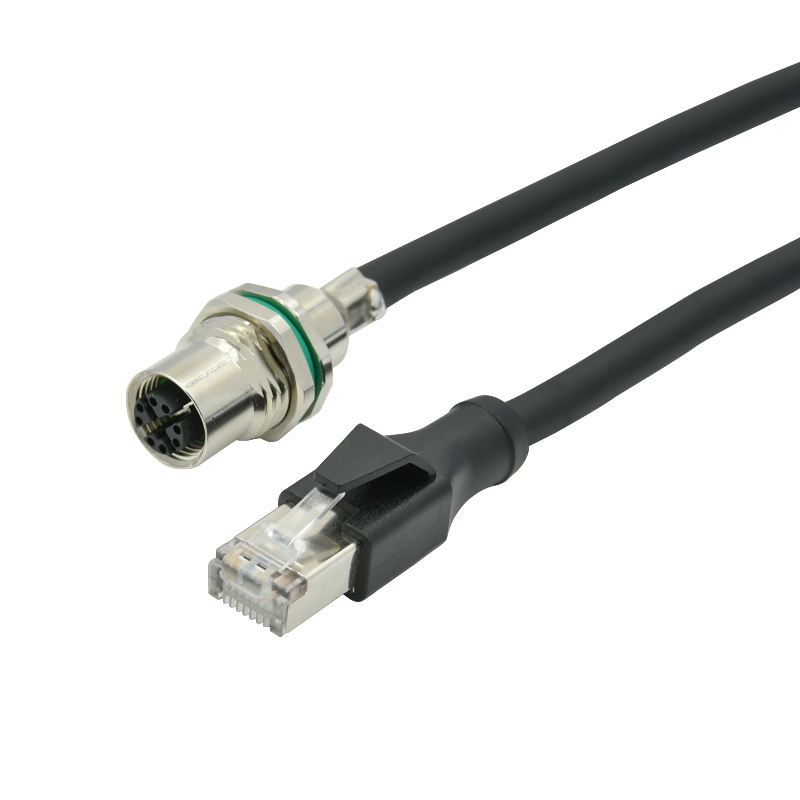

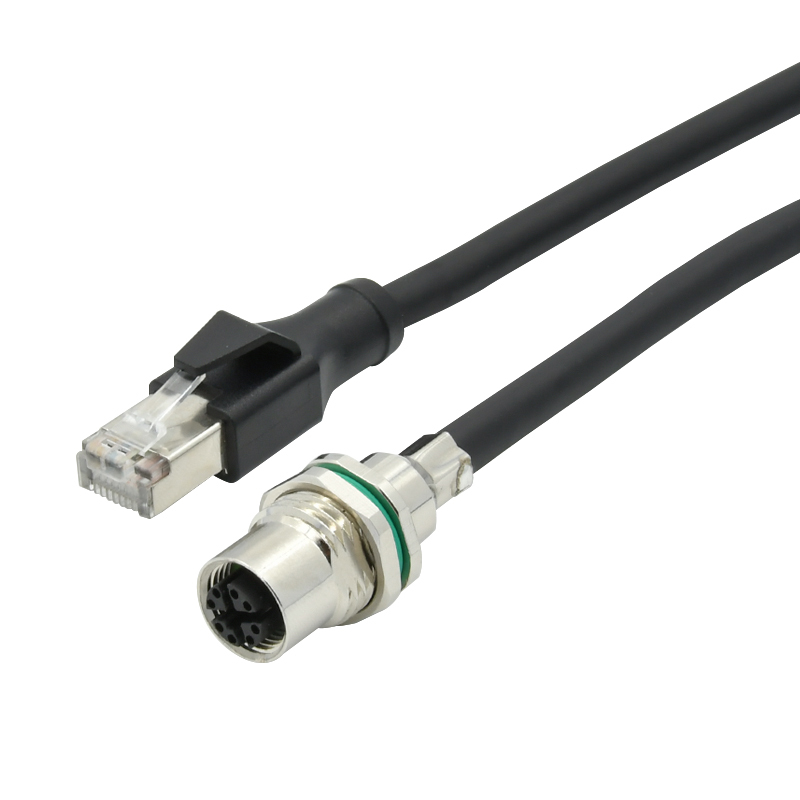

m12 to rj45 patch cable, m12 male to rj45 cable, m12 female to rj45 cable, 10Gbps gigabit x-coded m12 to rj45 ethernet cable, IP67

New development M12 plug connectors series products was following Two pairs D coding industrail Ethernet M12 plug connector,our factory launched a ccord with IEC6176-2-61076 Digabit Ethernet M12 x Coding new verstion cable connector.
M12 x Coding can demand four pairs Field assembly plug,all kinds of connector with different lengthe according to customer request,This series not only provided the front socket installation of circuit boards,it also COMPATIABLE  installation THR hole  connector,

And now,more and more request X coding M12 plug connector,because in scope of gigabit Enthernet(CAT6A maximum of  500MHZ Handwidth) with high-speed data transmission rate to reach recognised M12 connector parameters.morever,X -Coding series can reach High mechanical and electrical strength,therefore ,X coding m12 connectors are very suitable for harsh industrial Environments,also be applied to IP67 Anti-fouling moistureproof
 Excellent 360° Shielding ensures effective EMC immuntity safe and reliable connector,in order to acchieve smooth daa transmussion

1, Cording: A cording including 2 3 4 5 6 8 12 17pin, B coding including 3 4 5pin, D coding for 4pin, X coding for 8pin.

2, Contacts with solder and screw.

3, Cable material PVC or PUR, cable length 2meter 3meter 5meter or by buyyer's option.

4, Shield or unshield is optional, waterproof degree at least IP67.
