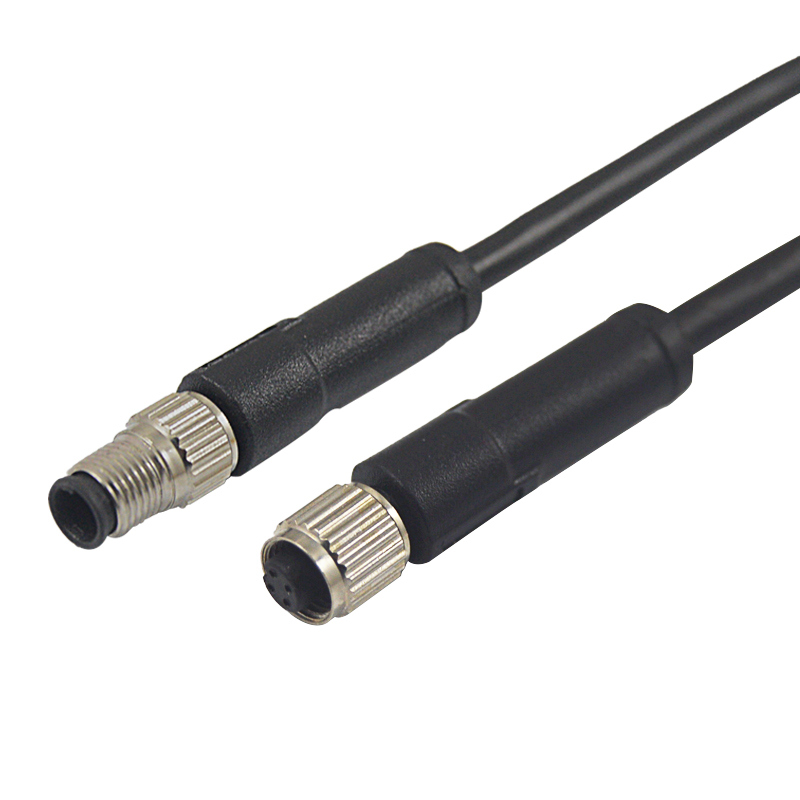

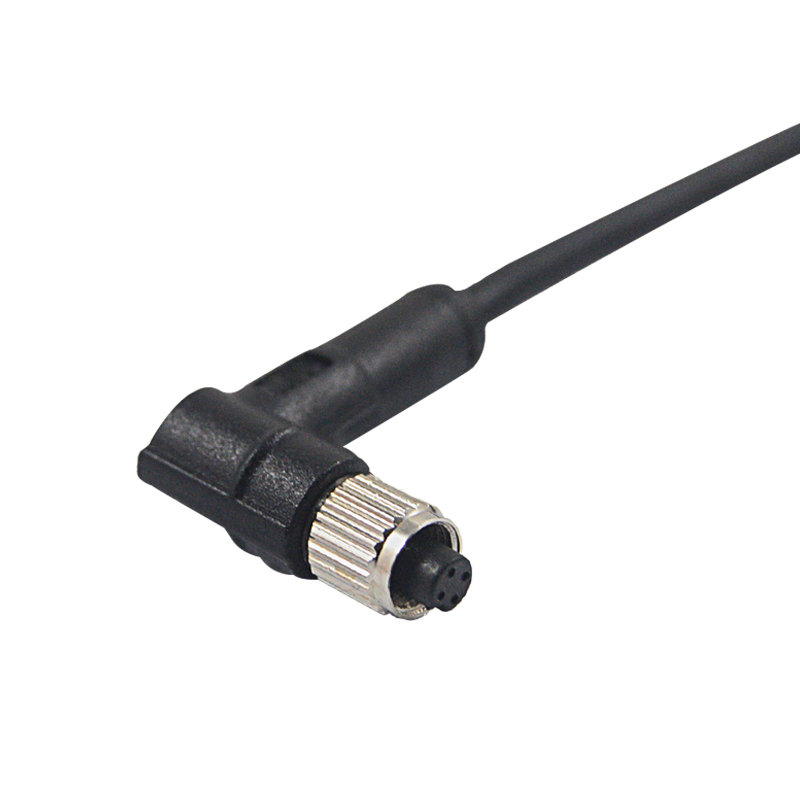

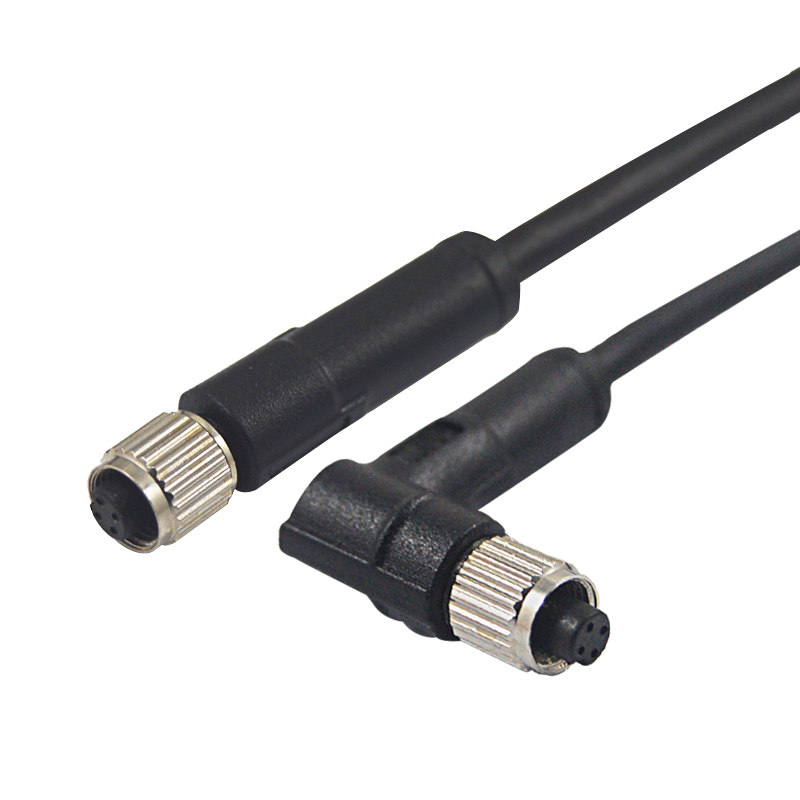

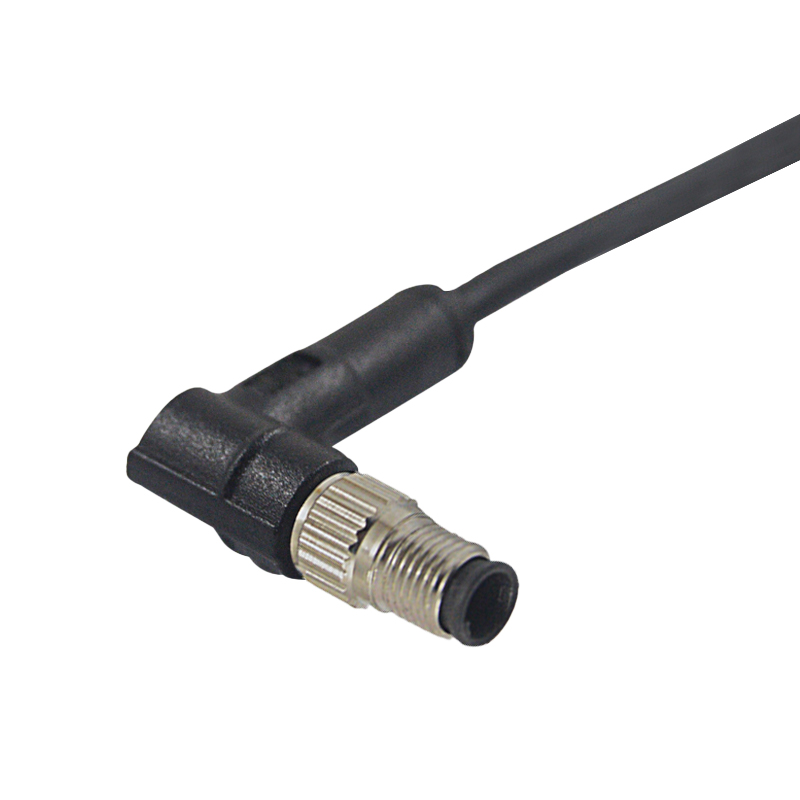

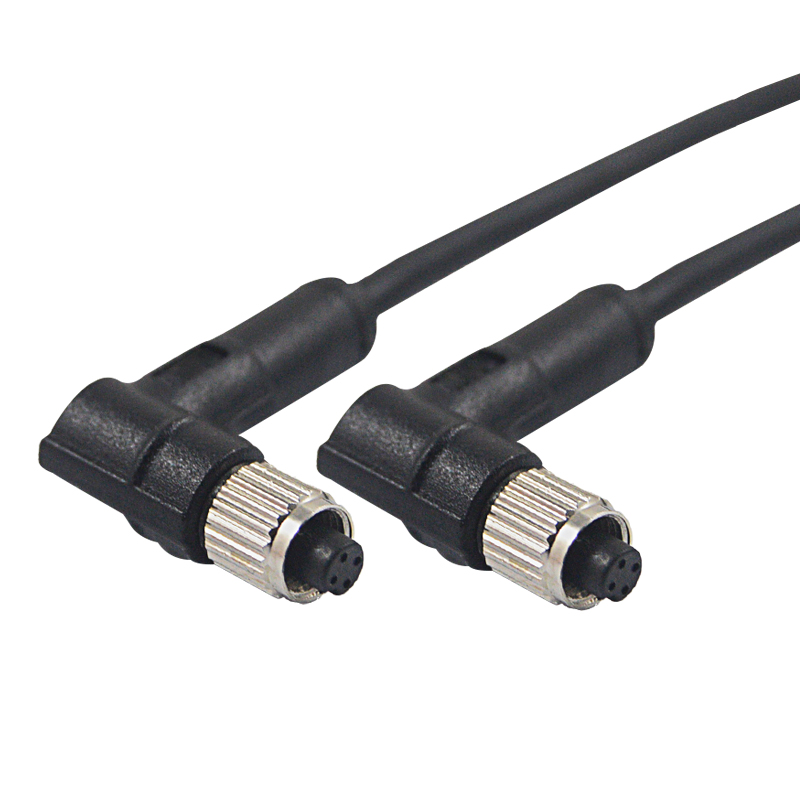

M5 connectors are circular connectors with a 5mm pitch, typically used for low power or communication connections. These connectors are commonly used in compact and industrial devices due to their small size and durability.
Here are some key features of M5 connectors:
1. Size:The 'M5' refers to the metric size of the thread of the connector. It is smaller compared to M8 and M12 connectors.
2. Design: M5 connectors often have a screw locking mechanism which ensures a secure connection even in the presence of strong vibrations.
3. Applications:** They are used in various sensor applications, automatized production, or control systems due to their reliable data transmission capabilities.
4. Water-resistant: Like M8 and M12 connectors, M5 connectors can also come with IP67 or IP68 ratings, ensuring protection against dust and temporary or permanent submersion in water.
5. Pin Variations: M5 connectors are available typically in 3-pin and 4-pin configurations, suitable for power supply (3-pin) and data/signal transmission tasks (4-pin). It's important to note that while M5 connectors offer the advantage of compact size, they also tend to have lower current and voltage ratings compared to their larger M8 and M12 counterparts. As always, the specific product datasheet should be referred to ensure the connector is suitable for the intended application.
| Series | M5 M8 M9 M12 M16 M23 Connector | ||
| Coding |
|
||
| Contacts | 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19pin | ||
| Color | according to your request to customize | ||
|
Plug Socket | ||
|
PVC/PUR/TPU | ||
| lenghth | 0.3-20M(Customizable) | ||
| Contact resistance | ≤5MΩ |
