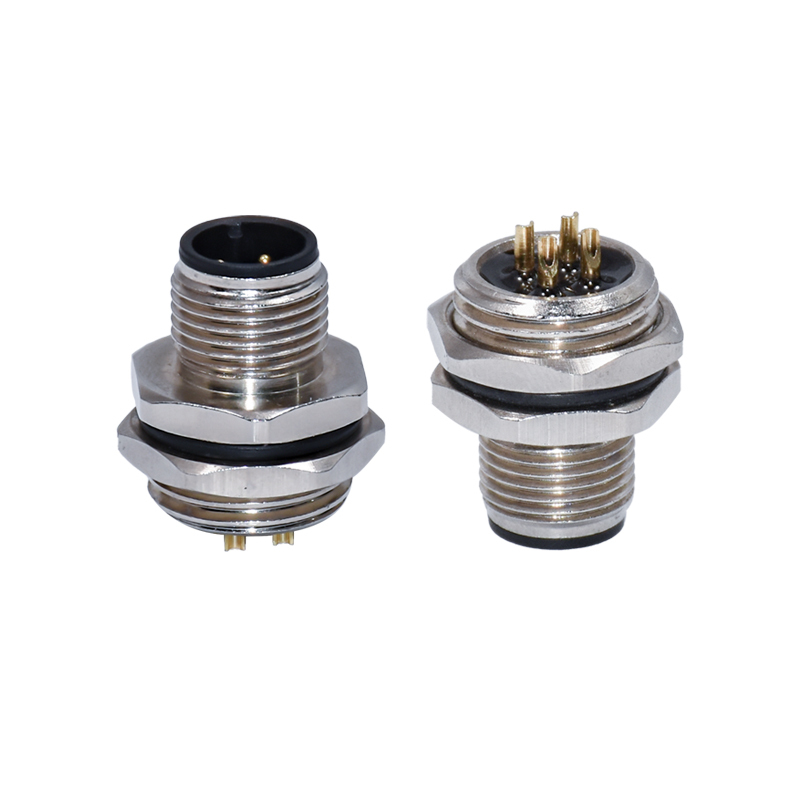

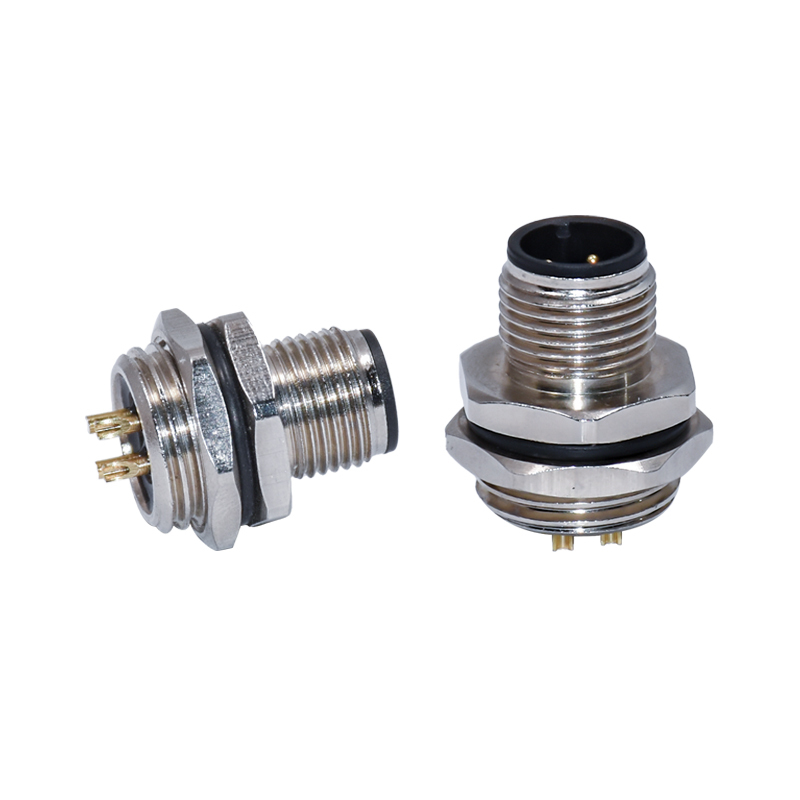

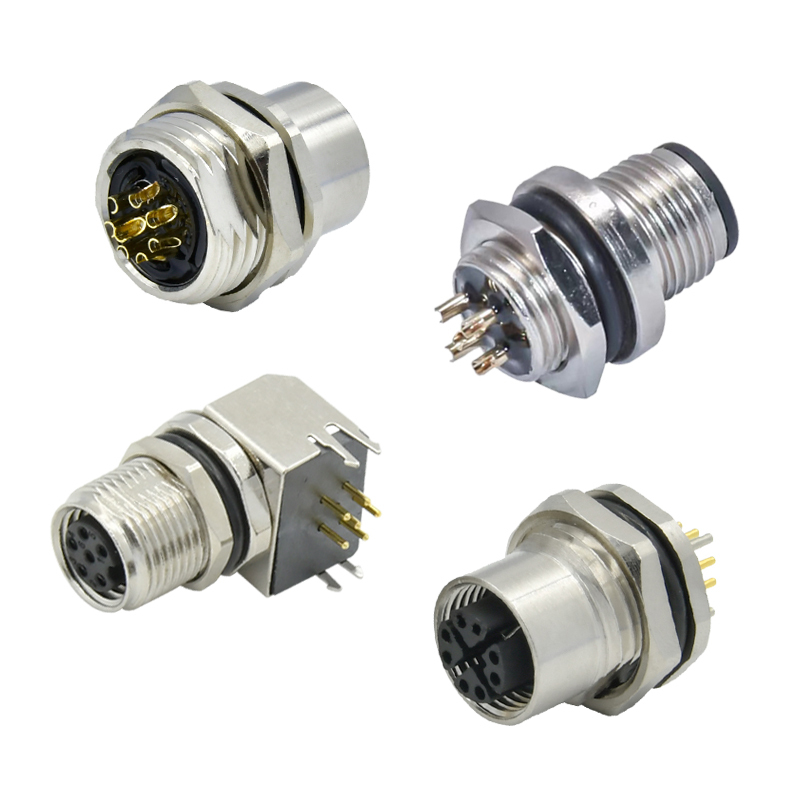

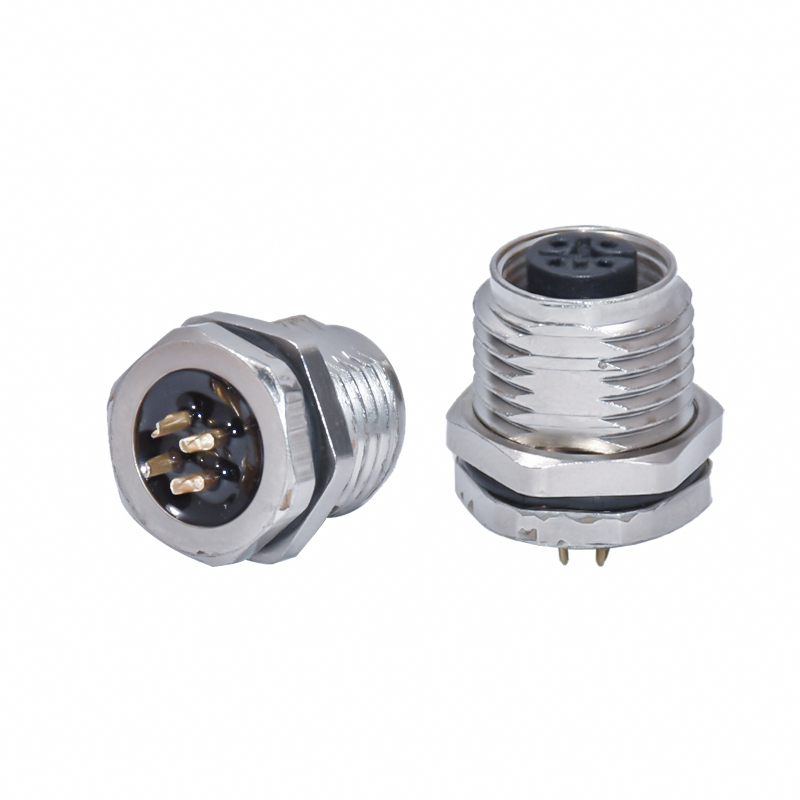

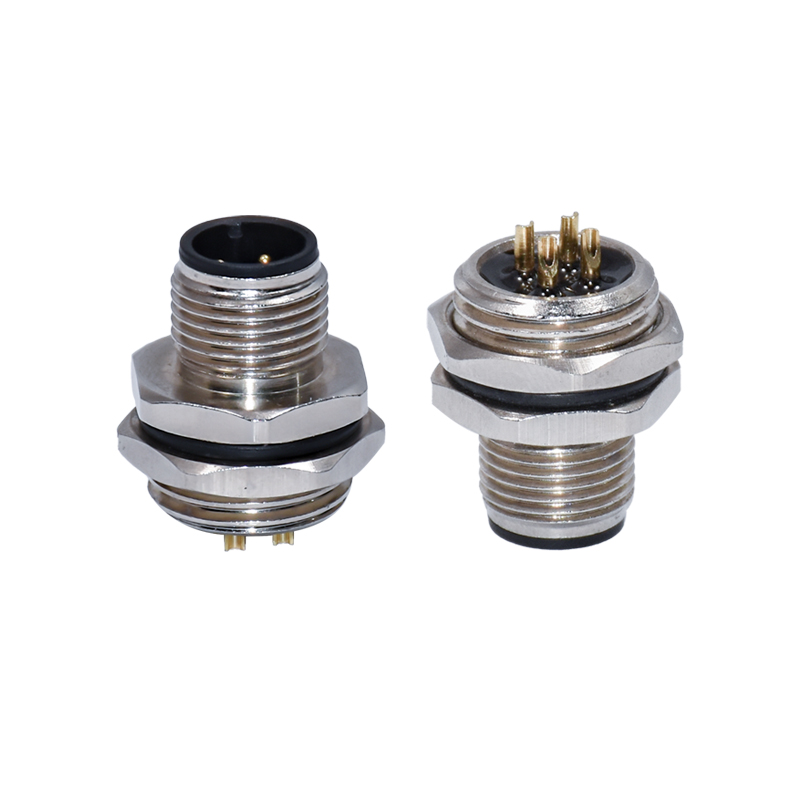

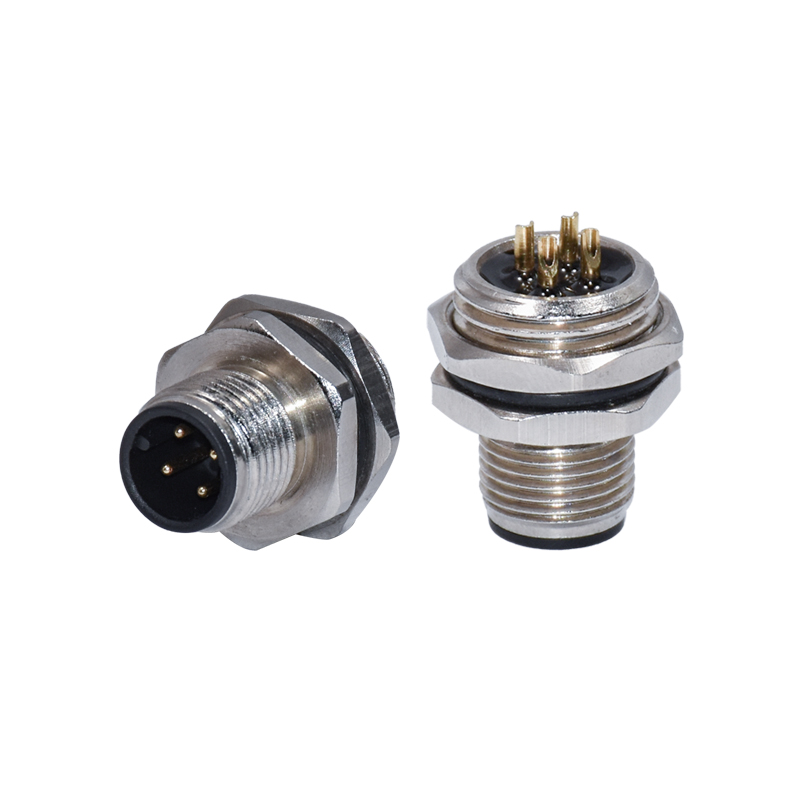

M5 M8 M12 M16 waterproof sensor adapters connectors ip67/ip68 male to female wall panel mount A B D code cable
M12 circular connector conforms to IEC 61076-2-101,IEC 61076-2-109,IEC 61076-2-111,IEC 61076-2-113 standard. It provides reliable and stable connection with light weight and small profile, quick and easy to use.
Material Data
Housing color:Nickel
Housing material:copper alloy
Insulator color:Black
Insulator material:LCP GF
Plating signal contact (mating area):Gold over nickel
Signal contact material:Copper alloyTechnical Data
| Standard | IEC 61076-2-101 |
| Termination | Solder PCB |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Ambient temperature(operation) | -25°C~+85°C |
| Mechanical operation | >100 mating cycles |
| Rated voltage | 30V~250V |
| Rated impulse voltage | 500V |
| Rated current(40°C) | 1.5A~4A |
| Contact resistance | ≥100MΩ |
