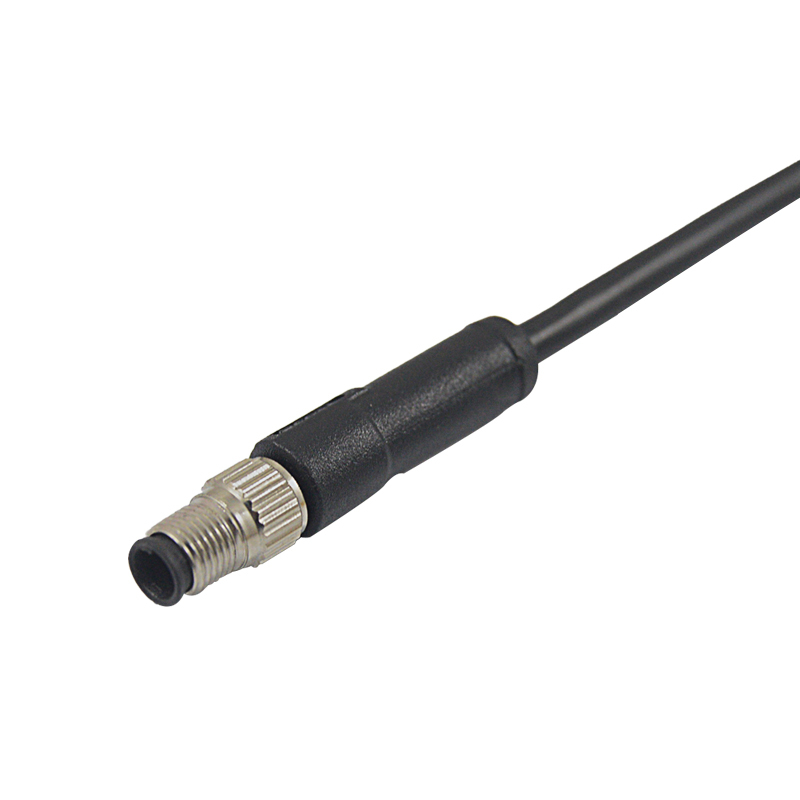

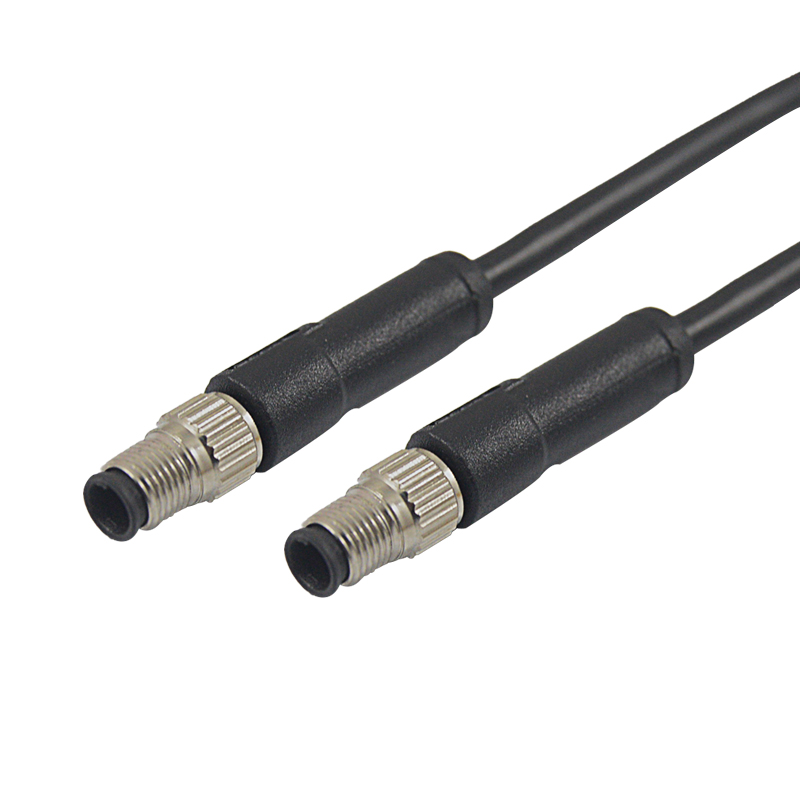

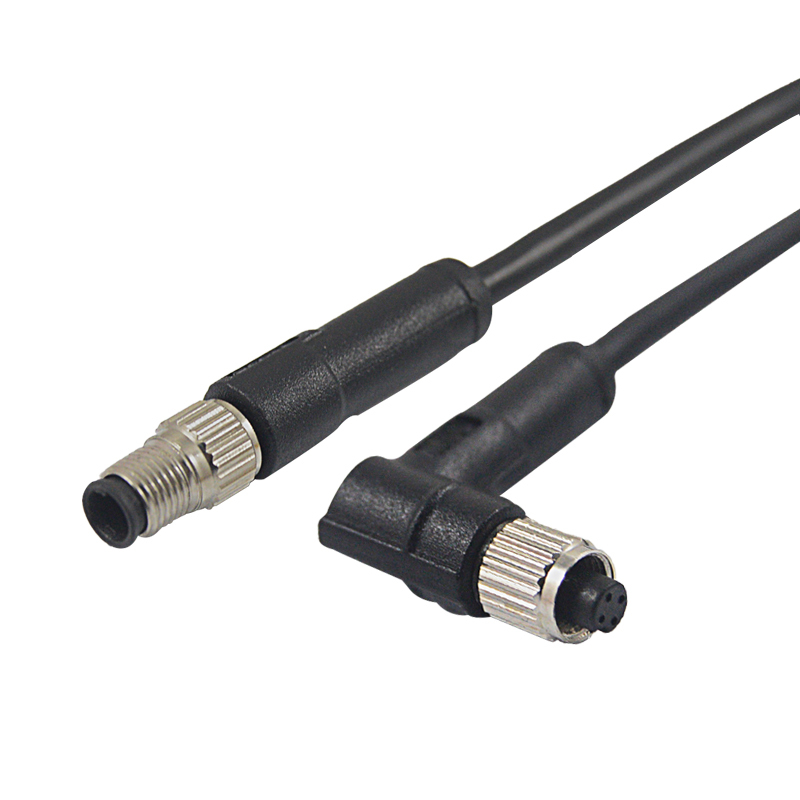

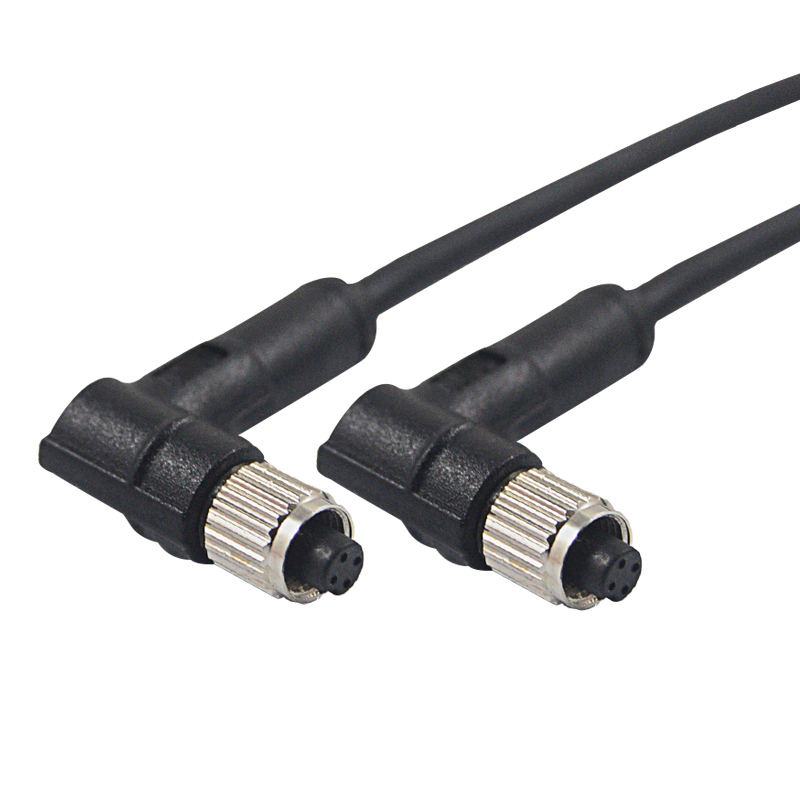

M5 Series 3pin Wire IP68 Connector Moulded a Code Aviation Plug

M5 Series 3pin Wire IP68 Connector Moulded a Code Aviation Plug

Name: M5 Series 3pin Wire IP68 Connector Moulded a Code Aviation Plug
Brand: fremibs.com
SKU: FRM662300250
Availability: InStock
Rating: 5 (1 reviews)

Item No.: FRM662300250

M5 sensor plastic cable IP67 A code male female 3 4 pin straight waterproof connector
M5 is designed for the device connection mostly for sensor/actuator boxes,field- bus modules and industrial controllers.

GenderMale/Female

CodeA, B, C, D, S, T,L,K

Number of Pin2 3 4 5 8 12 17 pin

TypeM12 Cable Connector

StandardIEC 61076-2-101

IP ratingIP68/IP67

Contact platingAu(Gold)

Operate temperatureFlexible: -25°C ~ +80°C, Static: -40°C ~ +80°C

Request Quote Contact Us

Description Review

Description

M5 Series 3pin Wire IP68 Connector Moulded a Code Aviation Plug

M5 electronic components for applications such as machine condition monitoring, thickness gages, video probe for remote inspection and soil moisture sensors.
M5 connectors are available with 3 and 4 poles and are equipped with a threaded ring with an anti-vibration lock. The protection class is IP67/IP68. The cable parts of M5 connector have overmoulded cables. The outer diameter is 6.5 mm. The rated voltage is 60 V, the max. current is 1 A.
Size: M5 x 0.5 with screw locking
 M5 connector :

1. Connector M5 x 0.5 with screw interlock
2.  Connector over-moulded on cable
3.  Threaded ring with vibration resistance
4.  IP67 protection
5.  3 and 4 -pole designs
6.  2 m and 5 m cable length (PVC/PUR) Other cable lengths for quantities of 200 each or more are available upon request

Series
M5 M8 M9 M12 M16 M23 Connector

Coding

A/B/D/X/S/K/L coding

Contacts
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19pin

Color
according to your request to customize

Shell Style

Plug Socket

Material

PVC/PUR/TPU

lenghth
0.3-20M(Customizable)

Contact resistance
≤5MΩ

● Reference standard: IEC 61076-2-101
● Termination: Soldering
● Rated temperature: Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
● Insulation resistance: ≥100MΩ
● Contact resistance: ≤5mΩ
● Over-molding: TPU
● Contact carrier: TPU+GF
● Screw nut: Brass, CNC, Nickel-plated
● Contact: Male: Brass, Female: Phosphor bronze
● Contacts plating: Au(Gold)
● O-ring: FKM, Silicon
● Protection degree: IP67, IP68
● Pollution degree: 3
● Wire length options: 0.5, 1, 2, 3, 5 meter or as your requests
● 360° Shielded or Un-Shielded versions are available
● Optional cable material: PVC, PUR, LSZH, Ethernet, Profinet
● IP67, IP68, IP69K and UL approvals
● All the connectors can be customized, please ontact us to get what you need~
