Description

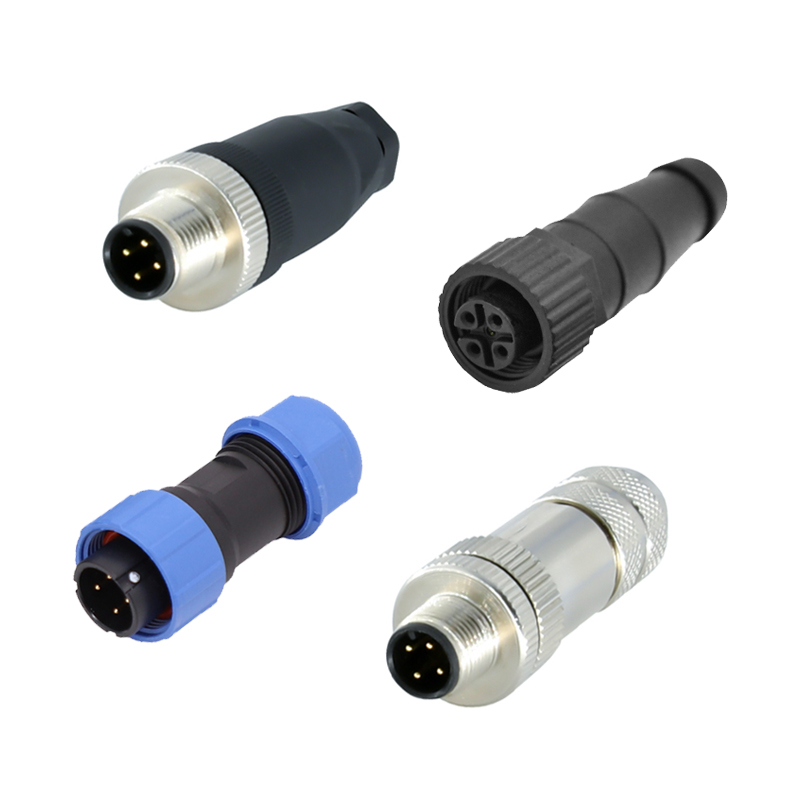

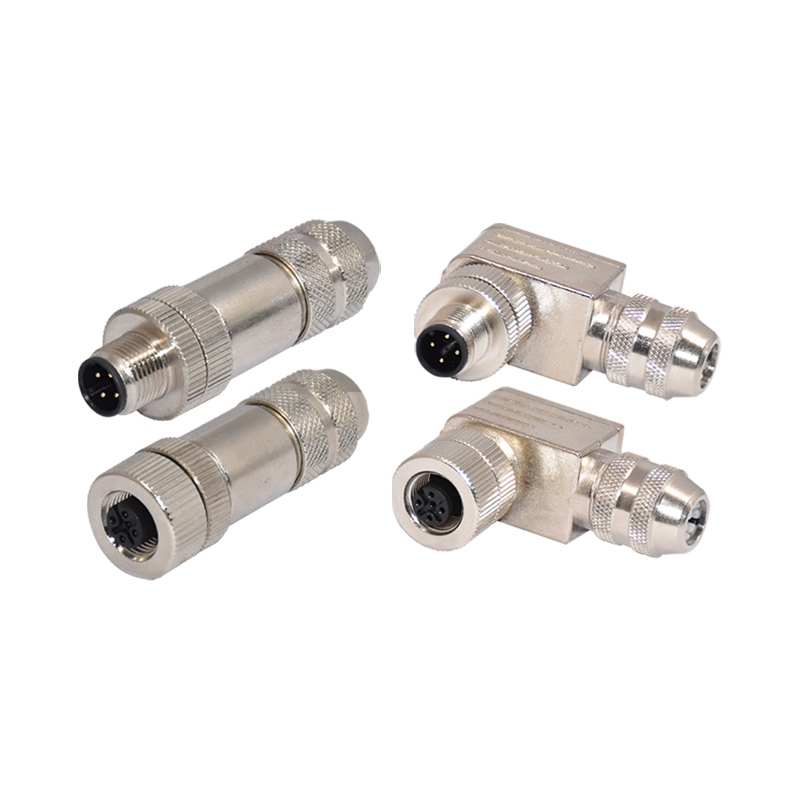

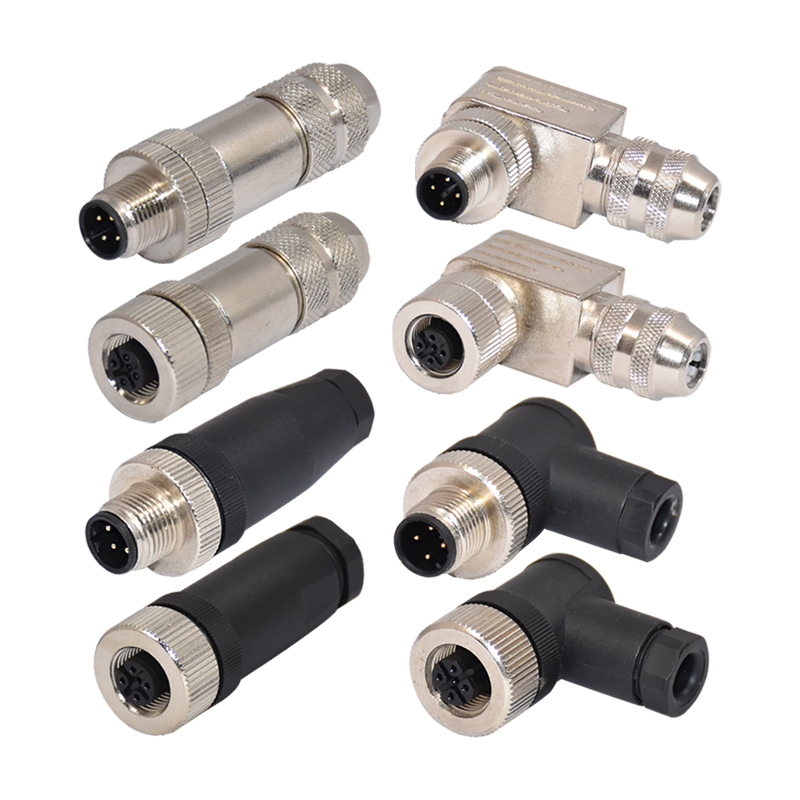

M5 M8 M12 M16 straight right angle male female assembly plastic metal circular connector
M12 assembly connector features:
1,Contact PIN: Brass with Gold plating.
2,Insulation plastic:PA+GF or PUR or LCP
3,Coupling nut/screw: Brass with nickel plating
4,Degree of protection: IP67/ IP68
5,Operating temperature: -25°C ~ +90°C
6,Type: straight and right angled assembly
7,Number of contact: 3pin ,4pin,5pin,8pin,12pin ,17pin







Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.Product Introduction

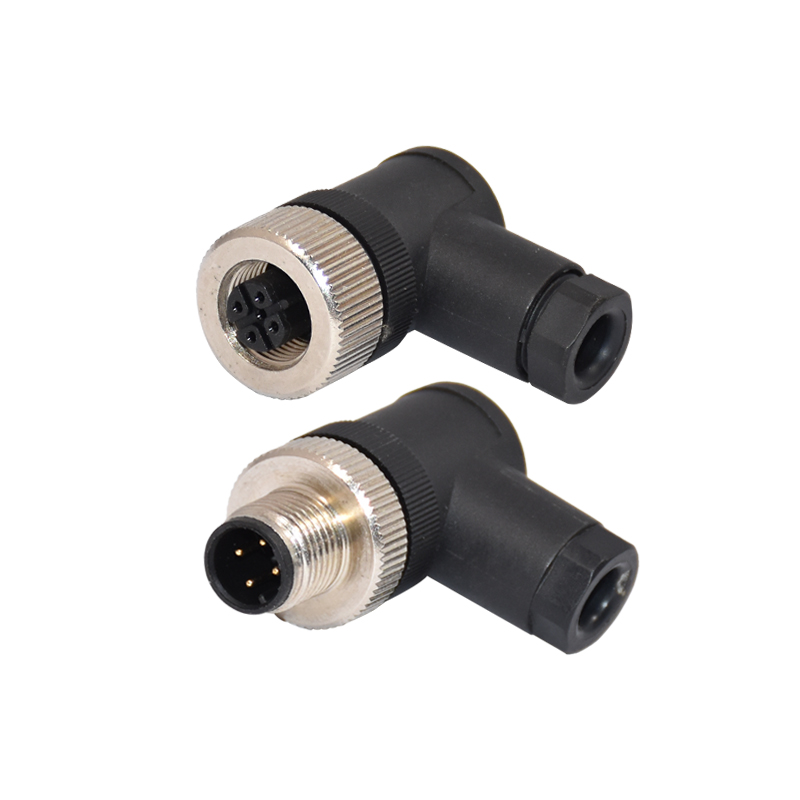

◉ M12 plastic assembly connector
◉ Type: Straight & Angled
◉ Type: Straight & Angled
◉ Coding: A
◉ Contact: 3, 4, 5, 8 pin
◉ Gender:Male and Female
◉ Wire connection type: Screwing
◉ Shield: Non-available
◉ Cable: AWG 24-18 in PG9/PG7 outlet
| Contact | Brass, gold-plated |
| Contact carrier | PA66+GF |
| Knurl | Brass, nickel-plated |
| Gripping body | PA |
| Protection degree | IP68 |
| tempuraturer | -25℃~85℃ |
| Flame retardant rating | UL94-HB |
| Insertion/withdrawal cycles | ≥ 300 cycles |
| Contact resistance | ≤ 5 Ωm |
| Insulation resistance | ≥ 100 Ωm |
